Temperature Gauge Supplier

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Temperature Gauge, based in Gujarat, India.

This temperature gauge is one of the outstanding solutions for precisely measuring the temperature of the respective application in order to regulate favorable environment necessary to execute variegated processes duly. The offered series of the temperature gauge functions on the mechanical principle, wherein the bourdon tube connected to a gear and shaft of the respective gauge that moves a pointer. This temperature gauge has succeeded in convincing good market for its accuracy and reliability aspects.

temperature pressure gauges

We as a supplier, trader and exporter possess significant years of experience and expertise helps to profoundly understand each temperature gauge and procure the best among from the reputed manufacturer. Further, the temperature gauge is also checked on the several quality measures by a team of quality specialist who work with the best team; in order ensure a quality and reliability of the respective temperature gauge.

Our band breaking efforts to come up with the latest technology and consistency in the quality has made us a one of the front runner in the market as a guaranteed quality temperature gauge supplier and exporter worldwide. In respect to variegated need of the industries, we as a supplier, trader and exporter of the temperature gauge introduces a range of qualitative temperature gauge including Bimetallic Temperature Gauge, Filled Systems Temperature Gauge and Capillary Type Temperature Gauge, featuring easy installation, easy maintenance, durability and impeccable functioning, available at the most favorable rates in the market.

Bimetallic Temperature Gauge Supplier

Principle options available in Diaphragm Sealed Gauge:
Dial 4" (100 mm.), 6" (150 mm.), 8" (200 mm.), white aluminum
Pointer Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel
Accuracy 4", 6", : ± 1.6%

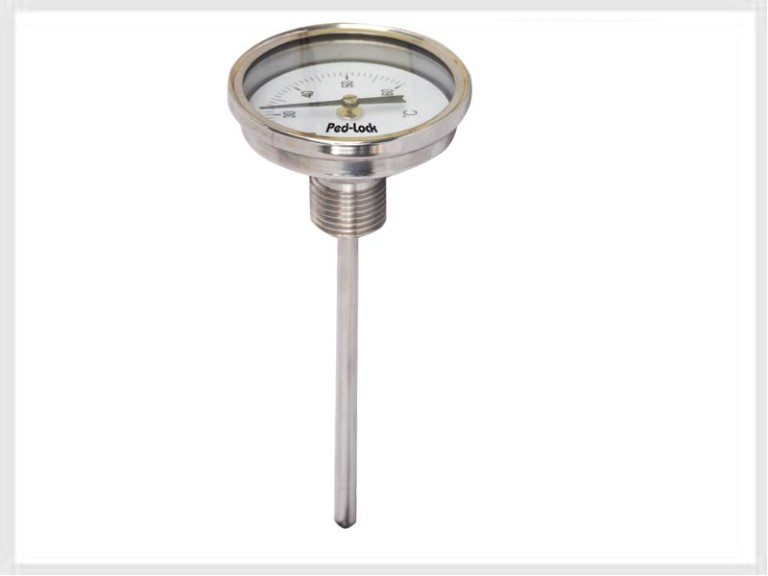

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Bimetallic temperature gauge, based in Gujarat, India.

This bimetallic temperature gauge is profoundly designed in order to measure temperature of the respective system at par extent, in which stainless steel and drawn steel is used to form two different metal sheets boasting different thermal expansion coefficients, measures temperature of the respective system projecting the movement of two metal sheets. This bimetallic temperature gauge is known for delivering quick response and fast measurements precisely.

We as a supplier, trader and exporter comprehend the functionality of the bimetallic temperature gauge and hence competent to recognize the righteous temperature gauge based on its functionality.

Leveraging the knowledge, our approach to the certified vendors of the same and former to the association, we prefer to scrutinize the product range in order to determine the conformity of the respective bimetallic temperature gauge with the set quality standards.

In detail, this bimetallic temperature gauge functions with a measuring system made of two sheets with two different expansion coefficient as said earlier, which are joined permanently. As the temperature changes, the deformation of the bimetal strips occurred into the tube shapes results in a rotational movement, a movement that causes compression of any of bimetal strip, which leads to rotation of the other pointer shaft. This bimetal temperature gauge is highly sought after in the market for its economical, sturdy, reliable and accurate temperature measuring traits in the industry.

We as a supplier, trader and exporter of this bimetal temperature gauge have made it accessible in the extensive series in order to accomplish the exact requirement of the respective clientele. This so alleged bimetallic temperature gauge finds its application in petroleum industries, thermal / hydro power stations, heating and ventilation, food process industries / hygienic applications, water treatment plants, iron and steel industries, chemical process industries, etc.

Technical side of the Bimetallic Temperature Gauge:

Nominal Size (mm) 40,50,63,80,100,150
Scale Range -50..to..0..to..600˚ C
Accuracy in FSD 1%
Thread Connection 3 /8″, ½ ", BSP & NPT
Mounting of Gauge Bottom, Back, Surface, Panel
Case and Bezel Drawn steel and SS 304
Pressure Elements Bimetal helix
Diaphragm NIL
Wetted Parts SS 304 and SS 316t
Optional Thermowell

Filled System Temperature Gauge Supplier

Technical side of the Filled System Temperature Gauge:
Nominal Size (mm) 63, 80,100,150
Scale Range -40˚ C to 650˚ C
Accuracy in FSD 1%
Thread Connection 3/8″, ½ ", BSP & NPT and other on request
Mounting of Gauge Bottom, Back, Surface, Panel
Case and Bezel Drawn steel, SS 304
Pressure Elements Mercury In Metal and Gas in Metal
Diaphragm Nil
Wetted Parts Brass, SS 304, SS 316 & other material on request
Optional Thermowell, Electric contact & Liquid Filled

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) filled system temperature gauge, based in Gujarat, India.

This filled system temperature gauge is ingeniously designed temperature gauge to measure the temperature of the various industrial processes. It is basically a temperature gauge with bourdon tube whose pressure is solely depends upon the pressure of gas like nitrogen, helium or on the amount of a liquid filling the system. As the results based upon the filled substance, this temperature gauge is named filled system temperature gauge, high in demand for its accurate readings and potency to uphold vibration and shock effectively.

By owing the application need of miscellaneous industries, we as a supplier, trader and exporter of the temperature gauge come up with the superior quality filled system temperature gauge, procured from one of the top most manufactures in the market. Further, stringent quality checks also carried out on the temperature gauge offered by the respective vendor in order to analyze the quality in respect to material and accuracy.

The operation of a filled system temperature gauge is completely bent on the thermal expansion of a filled liquid, the temperature reliance of the pressure of a gas or the temperature reliance of the fluctuated vapor pressure of a liquid. And as this temperature gauge is liquid filled, it measures the temperature based on the thermal expansion of a filled liquid. This filled system temperature gauge is broadly accepted in the several industries for its smooth functioning, significant sensitivity and a quick response to variation in temperatures.

We as a supplier, trader and exporter of the filled system temperature gauge have made it available in the wide collection for furnishing précised readings of the temperature. This range of the filled system temperature gauge can be availed at the most competitive rates from us and is recommended for the measuring the temperature ranging from -60º C to 550º C, finds application in Chemical and Petrochemical, Plastic and paper industries.

Capillary Type Temperature Gauge Supplier

Technical side of the Capillary Type Temperature Gauge:
Nominal Size (mm) 63, 80,100,150
Scale Range -40˚ C to 650˚ C
Accuracy in FSD 1%
Thread Connection 3/8″, ½ ", BSP & NPT and other on request
Mounting of Gauge Bottom, Back, Surface, Panel
Case and Bezel Drawn steel, SS 304
Pressure Elements Mercury In Metal and Gas in Metal
Diaphragm Nil
Wetted Parts Brass, SS 304, SS 316 & other material on request
Optional Thermowell, Electric contact & Liquid Filled

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Capillary type temperature gauge, based in Gujarat, India.

This capillary type temperature gauge is configured by a team of shrewd cad engineers with respect to its application requirement and functionality, is broadly used for measuring the temperature of variegated liquid gases. This offered capillary type temperature gauge is prominent in the several industries for its smooth installation and operation quotient.

We as a supplier, trader and exporter of the capillary type temperature gauge have rigorously searched and thereafter have accompanied with the prominent manufacturer of the capillary type temperature gauge, inspecting on the several measures incorporating construction material, accuracy, durability and versatility of the same. The capillary type temperature gauge that we offer is hence assured for the conformity with the international measures.

This capillary type temperature gauge is best alternative for measuring temperature of liquid or gas, where the distance is considerably higher from the site, in which this capillary type temperature gauge installed to the back connection temperature gauge to gauge the temperature of the application. The length of the capillary perhaps varies from application to application has enable to measure the temperature with an accuracy of +1% and hence is considered as one of the most versatile temperature gauges.

Keeping track with the revolutionary need of this capillary type temperature gauge, we as a supplier, trader and exporter have made it accessible in an extensive portfolio of the specification that is sought after in various industrial sectors. The offered range of the capillary type temperature gauge finds its application in the petrochemical, power, energy, thermal, chemical & petrochemical, plastic & paper, air conditioning and food and beverages industrial sector, can be accessible at the most competitive rates from us.
