Sealed Pressure Gauges Supplier

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) sealed Pressure Gauge, based in Gujarat, India.

This sealed pressure gauge is used to measure sealed pressure through a trapped atmospheric pressure within the back of the sealing, in which a sealed gauge reference means that the atmospheric pressure is sealed in at around 1 bar. This sealed pressure gauge is one of the best approaches for applications with a high pressure range and a consistent temperature. This sealed pressure gauge is also extensively used for protecting pressure gauge in high pressure applications as well as where there is no possibilities for the sensor to allocate a vent path.

By owing the need of the sealed pressure gauge, we as a supplier, trader and exporter of pressure gauge associate with the authorized manufacturers of the sealed pressure gauge, ensuring accurate readings, long life expectancy, excellent corrosion resistance, temperature resistance and consistency. This sealed pressure gauge is available in the diverse specifications and types in order to comply with small to large scale industrial requirement.

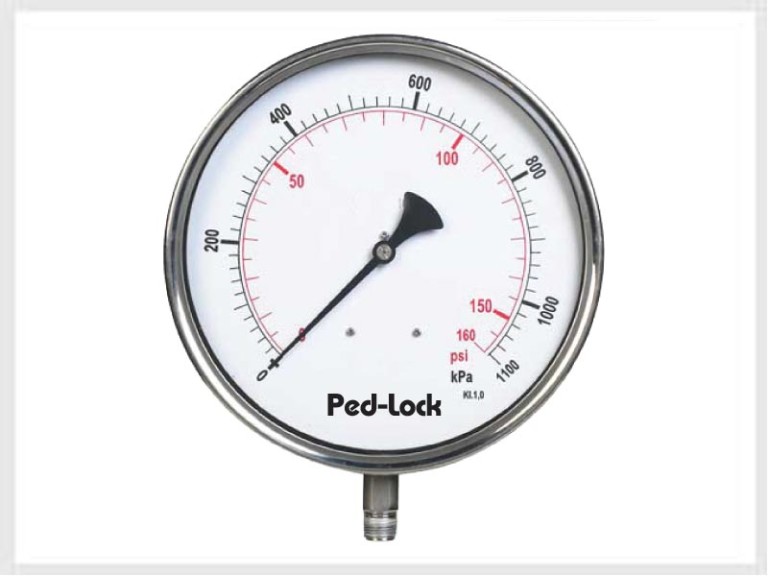

sealed pressure gauges

Diaphragm Sealed Gauge Supplier

Principle options available in Diaphragm Sealed Gauge:
Dial 4" (100 mm.), 6" (150 mm.), 8" (200 mm.), white aluminum
Pointer Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel
Accuracy 4", 6", : ± 1.6%

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Diaphragm sealed gauge, based in Gujarat, India.

This diaphragm sealed gauge is a type of pressure gauges sealed with the diaphragm seal that promote to isolate the measuring pressure gauge from the process medium and hence avert any detrimental effect on the pressure gauge. This diaphragm sealed pressure gauges are extensively in demand in several industrial applications, where pressure gauge need to be operated under extreme temperature ranging from -90 ºC to +400 ºC with corrosive, aggressive, abrasive, highly viscous and heterogeneous media.

We as a supplier, trader and exporter of the pressure gauges comprehend the need of the diaphragm sealed in the miscellaneous applications and thereby stocked in the huge amount.

This diaphragm sealed pressure gauges are procured from the certified manufacturer after thorough examination of the diaphragm pressure gauge with respect to the several quality standards by the shrewd workforce of the quality inspector. Further, the frequent testing is carried out on the complete range of the diaphragm pressure gauge in order to ensure its consistency besides quality.

The offered diaphragm sealed pressure gauge has proven its effectiveness by measuring accurate readings and bestowing long life expectancy. This diaphragm sealed pressure gauge is basically filled with appropriate fluid, and when pressure applied by the process fluid, the diaphragm is hydraulically transmitted through the seal fluid to the pressure sensing element, and thus diaphragm seal secures the pressure sensor from the harmful effect of the process fluid.

This diaphragm sealed pressure gauge is ideally finds its application in Chemical & Petrochemical, Food & Beverage Indus try, Mechanical Engineering Plant & Apparatus Construction. And to serve each industry equally, we as a supplier, trader and exporter of the diaphragm sealed pressure gauge have stocked it in a huge assortment is made of the finest quality stainless steel and aluminum material whereas the window is made of the clear plain glass or safety galss, can be availed within a possible shortest time in India as well as overseas countries at the leading rates in the market.

Technical side of the Diaphragm Sealed Gauge:

Nominal Size (mm) 100, 150 mm
Scale Range 0..to 60 00 mmWC Low Pressure & 0..to 0.6 to 25 kg/cm2
Accuracy in FSD 1.6%
Thread Connection 3/8″, ½ ", BSP & NPT, M-20 and Flanged connecti on
Mounting of Gauge Direct Bottom
Case and Bezel Drawn steel, SS 304
Pressure Elements Schaffe r’s Diaphragm
Diaphragm YES
Wetted Parts Spring Steel Teflon Coated, SS 304, SS 316 and other material on request
Optional Teflon lining, Electric Contact and Liquid Filled

Chemical Sealed Pressure Gauge Supplier

Principle options available in Chemical Sealed Pressure Gauge:
Dial 4" (100 mm.), 6" (150 mm.), 8" (200 mm.), white aluminum
Pointer Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel
Accuracy 4", 6", : ± 1.0% (± 1.6% with filling)

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Chemical Sealed Pressure Gauges, based in Gujarat, India.

This chemical sealed pressure gauge is a diaphragm seal only, having a seal of chemical on the diaphragm surface and thereby it has renowned as the chemical seal, and the pressure gauge sealed with such a diaphragm is famed as a chemical sealed pressure gauge in the industries. This chemical sealed pressure gauge range is enormously acknowledged pressure gauge, in which the chemical seals functions to separate the pressure gauge from corrosive, highly viscous or hazardous media and high temperature.

We as a supplier, trader and exporter of the pressure gauge possess a team of the experienced professional owing the thorough knowledge in the pressure gauge and its usage in the variegated industries; promote us to pick out the best possible pressure gauge for the respective application. And by continuing with the same, our experts have wisely selected a range of the chemical sealed pressure gauges from the certified manufacturer in order to serve industries require to measure the pressure under corrosive and high temperature environment.

This chemical sealed pressure gauge is specifically designed pressure gauge that performs adeptly in pressure ranges from 10 mbar to 1600 bar as well as can be regulated in the temperature ranging from -90 ºC to +400 ºC constant temperatures. This chemical sealed pressure gauge is avowed in the several industries for protecting the pressure gauge from the pressure media while permitting pressure variations to be accurately conveyed to the pressure sensing element, wherein the applied pressure on the diaphragm is conveyed to the pressure sensing element with the help of a compatible liquid.

We as a supplier, trader and exporter of the pressure gauge has stocked the chemical sealed pressure gauge in the huge gamut, in which top grade stainless steel is used for the wetted parts whereas window of the case is available in plain glass as well as safety glass. This offered gamut of the chemical sealed pressure gauge finds its application in Chemical and Petrochemical, Plastic and paper, Pharmaceutical, Water treatment where the pressure medium is corrosive, pressure medium is highly viscous, pressure medium is homogenous or possess suspended matter, pressure medium tends to crystallize or polymerize.

Technical side of the Chemical Sealed Pressure Gauge:

Nominal Size (mm) 63, 100 mm
Scale Range 0.. Vacuum to 700 kg/cm2 & above on request
Accuracy in FSD 1%
Thread Connection 3/ 8″, ½", BSP & NPT, M-20 and Flanged connection
Mounting of Gauge Direct Bottom
Diaphragm YES
Wetted Parts SS316, SS316L, Teflon, Monel, Hastalloy & other on request
Optional Electric Contact, Back Mounting & Liquid Filled

Compact Sealed Pressure Gauge Supplier

Principle options available in Chemical Sealed Pressure Gauge:
Dial 4" (100 mm.), 6" (150 mm.), 8" (200 mm.), white aluminum,
Pointer Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel.
Accuracy 2", 2.5" 4", : ± 1.0%

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Compact Sealed Pressure Gauges, based in Gujarat, India.

This compact sealed pressure gauge has proven its effectiveness in order to isolate measuring system of the pressure gauge from corrosive, pasty or hazardous field based on the viscosity, pressure, vacuum, solidification of the specific process medium. This compact sealed pressure gauge is recommended for corrosive environments and gaseous or none obstructs pressure system. The offered compact sealed pressure gauge has earned considerable popularity in the market for sharing high measurement accuracy and minimum maintenance traits.

The success of ours in the allied domain is all because of our attentiveness towards quality, be it accuracy or reliability, which is ascertained by partnering with the certified manufacturers of the compact sealed pressure gauge.

Further, we are armed with a team of QC, in order to ensure the quality of the procured pressure gauge, which is carried out by performing several tests to check its reliability, accuracy and robustness. We as supplier, trader and exporter of the compact sealed pressure gauge equally focus on the quality standards of the procured range of the same to ensure its worthiness.

The offered compact sealed pressure gauge is specifically designed pressure gauge sealed with the diaphragm to the top of the chamber in order to ensure a prefer sealing "no leak". Further, the welded construction of the offered compact sealed pressure gauge offers easy removal of the gauge without any down time. This compact sealed pressure gauge is effective for low pressure measurement of dry and gaseous media, commercial heating, level measurement, gases distribution & filtration system.

In respect to the variegated requirement of the different industries, we as supplier, trader and exporter of the compact sealed pressure gauges have made it available in the assorted specification. The widow of the entire range is available in plain glass or safety glass, whereas the wetted parts are available in stainless steel or brass material. The exhaustive range of the compact sealed pressure gauge finds its application in Chemical / Petrochemical, Power Station, Mining, on and off shone, environmental technology, mechanical engineering and plant construction.

Technical side of the Compact Sealed Pressure Gauge:

Nominal Size (mm) 50, 63, 100 mm
Scale Range 0.. to 0.6..to 100 kg/cm2
Accuracy in FSD 1%
Thread Connection 1/4″, 3/8″, ½ ", BSP & NPT, M-10, M-12, M-20
Mounting of Gauge Direct Bottom
Case and Bezel SS 304
Pressure Elements Bourdon Tube
Diaphragm YES
Wetted Parts Brass, SS304 & SS 316
Optional Back Mounting & Liquid Filled
