Homogenizer Pressure Gauges Supplier

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Homogenizer Pressure Gauge, based in Gujarat, India.

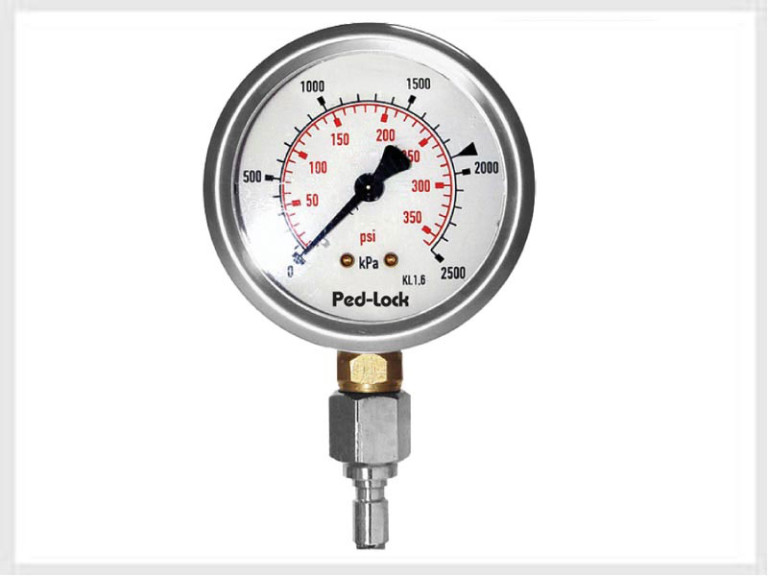

This homogenizer pressure gauge is a liquid filled case specifically configured to provide supreme pressure readings for resisting & measuring high pressure from corrosive, pasty or dangerous fluid depending on the viscosity, pressure, solidification of a particular process medium, wherein continuous pulsating media and vibration exists. This homogenizer pressure gauge is extensively used pressure gauge in food and dairy industries on Homozenizer Machines due to its diaphragm sealed design.

homogeneous pressure gauges
Principle options available in Homozenizer Pressure Gauge:
Dial R-12, 22, 502A, R-134A, R404 a temp. readings
Pointer Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel
Accuracy ASME Grade B

With elongated expertise and knowledge in this segment, we have made a considerable reputation in the market for offering nonpareil quality of the homogenizer pressure gauge. In order to serve the best in class quality, we as supplier, trader and exporter of this homogenizer pressure gauge collaborate with the certified vendors who adopt quality manufacturing processes to manufacture the range of the homogenizer pressure gauge. Further, our shrewd team of the quality analyst inspects the entire assortment on several aspects and renders a quality assurance, thereafter only; we coupled with the respective manufacturer.

The offered homogenizer pressure gauges are perceived as an incredible solution for measuring pressure, featuring précised design, smooth finish, excellent accuracy, corrosion resistance, moisture resistance as well as longer life span. This homogenizer pressure gauge range is widely in used in the pharmaceutical, plastic, chemical, paper, dairy, milk industries as well as equally used in the ice cream plant too.

We as a supplier, trader and exporter perceive the significance of the having huge inventory of the homogenizer pressure gauge in order to provide prompt support to the respective clientele and thereby have accumulated in the broad range. The available homogenizer pressure gauge is of top grade stainless steel material and advanced components of high accuracy, ensures the worthiness even in the critical context. Further, the offered range available in the different specification as well as different filled liquid incorporating Glycerin, Silicon and Halocarbon. The below table may help you to select virtuous homogeneous pressure gauge as per the temperature requirement the respective application.

Glycerin This liquid is ideal to operate the liquid filled pressure gauge at the room temperature, which works effectively in temperature between -20°C and +60°C.
Silicon This liquid has the lower viscosity even at the very lower temperature; make it the supreme choice to use the gauge under extreme temperature variation. Such a liquid pressure gauge is even elite choice to work under icing, which performs excellently between -40°C to +60°C
Halocarbon This liquid is used when there is oxidizing agents involved in the application, such as oxygen, hydrogen peroxide and chlorine. The Halocarbon filled pressure gauge are ideal for the temperature range between -20°C and +60°C.

Technical side of the Homozenizer Pressure Gauge:

Nominal Size (mm) 100, 150 mm
Scale Range 0.. t o 100..0..to 2000 kg/cm2
Accuracy in FSD 1%
Connection With / Without Clamp Type / Screwed Type
Mounting of Gauge Direct Bottom
Case and Bezel SS 304
Pressure Elements Bourdon Tube
Diaphragm YES
Wetted Parts SS 316, other material on request
Connection Rectangular Clamp, Remote Capillary, Electric Contact & Liquid Filled
