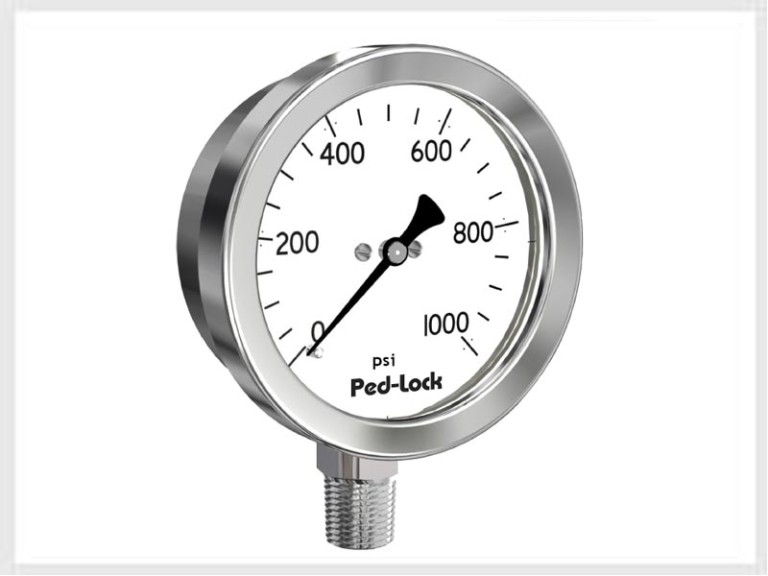

We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Heavy Duty Pressure Gauge, based in Gujarat, India.
This heavy dusty pressure gauge is alike to a liquid pressure gauge, which is extensively used where measuring accuracy is at the top priority. This heavy duty pressure gauge is ideal to use with semi viscous media including liquid and gaseous media, is a highly acclaimed pressure gauge in several industries for providing commendable accuracy besides long term stability all through pulsations and vibration environment. This heavy duty pressure gauge is recommended for application having high dynamic pressure liquid media that ill.
Dial | 4" (100 mm.), 6" (150 mm.), 8" (200 mm.), wh te aluminum |
---|---|
Pointer | Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel. |
Accuracy | 4", 6", & 8" : ± 1.0% (± 1.6% with filling). |
We as a supplier, trader and exporter possess enriched experience in the field of the pressure gauge, has enabled us to ingeniously select a range of heavy duty pressure gauge from the authorized vendor in order to ensure the accuracy, reliability and safety of the same. Further, as accuracy is the utmost concern for obtaining heavy duty pressure gauge, our expert team of the quality analyst stringently checks the heavy duty pressure gauge with the core focus on the accuracy in prior finalizing dealing with the same. Thereby we as supplier, trader and exporter of the heavy duty pressure gauge are confident in terms of its confirmation to the international quality measures.
We as a supplier, trader and exporter of the heavy duty pressure gauge ensure impeccable performance of the offered range in the corrosive environment as well as where vibration is the major issue. The range has proven its usefulness by providing incredibly accurate reading even in the harshest conditions because of its specific configuration, wherein the filled semi viscous fluid effectively reduces the vibration, pulsation and pressure spikes thus assist to read the gauge precisely. Additionally, the filled liquid also protects the measuring element of the pressure gauge from the corrosive environment.
This heavy duty pressure gauge has been stocked with the huge inventory in order to ensure prompt support and service to every esteemed client. The wetted parts of the entire range is made of the proven quality stainless steel material that ensure corrosive resistance, whereas the dial is made of the plain glass or safety glass as per the request is crystal clear in order to ensure the clear vision from the long distance too. This range of the heavy duty pressure gauge are highly sought after in the Chemical / Petrochemical, Power Station, Mining, on and off shone, environmental technology, mechanical engineering and plant construction, where accuracy is must.
Nominal Size (mm) | 40,50,63,80,100,150 ,250 |
---|---|
Scale Range | 0.. V acuum to 700 kg/cm2 & above on request |
Accuracy in FSD | 1% |
Thread Connection | 1/8″ , 1/4″, 3/8″, ½ " BSP & NPT, M-10, M-12, M-20 |
Mounting of Gauge | Bottom, Surface, Back, Panel with 3 holes, Panel with bracke |
Case and Bezel | Drawn steel, SS 304 |
Pressure Elements | Bourdon Tube |
Diaphragm | Nil |
Wetted Parts | Brass, SS 304 and other material on request |
Optional | Liquid Filled |
Lens Material | Glass Or Acrylic |
