We are a foremost supplier, trader & exporter of CE approved and full safety pattern (EN387-1) Economical Pressure Gauge, based in Ahmedabad, Gujarat, India.

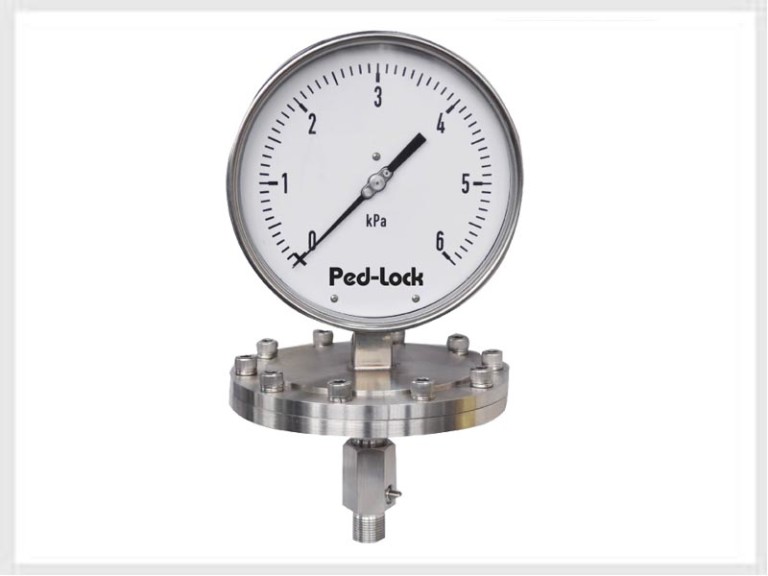

Economical pressure gauge as the name suggests, is an economical approach to measure the pressure. This economical pressure gauge is specifically designed in order to withstand the diverse service conditions, wherein pulsation or vibration presents in the process industry. This economical pressure gauge is ideal for media that does not obstruct the pressure system such as gas or liquid.
Dial | 1.5" (40 mm), 2" (50 mm.), 2.5" (63 mm.), 4" (100 mm.), white aluminum |
---|---|
Pointer | Black aluminum, fixed or adjustable. Wide selection of connections and pressure ranges. Crimped ring or bayonet bezel. |
Accuracy | 1.5", 2" & 2.5" : ± 1%, 4" : ± 1.6% |
We as supplier, trader and exporter of the pressure gauges have developed a considerable experience in the allied domain that has helped us to select the most appropriate range of the economical pressure gauges that is widely used in the certain industries. Further, in order to ensure the high standard of the economical pressure gauge, we deal with the authorized and prominent manufacturer of the same. Our ingenious team of the professional checks for the quality and its reliability, whereas also boast an in house QA team, who performs stringent quality checks to ensure its conformity to the finest quality standards.
We as supplier, trader and exporter have stocked this economical pressure gauges in a huge assortment in order to match with the need of the best possible industries. The outer parts of the offered economical pressure gauges are made of stainless steel and brass material to ensure its potency to withstand corrosive media too, whereas the dial is made of the toughest acrylic material or glass material to bestow excellent durability abreast clear visibility of the readings.
The offered range of the economical pressure gauge is known for its easy installation, excellent corrosion resistance, moisture resistance, virtually no maintenance, dimensional accuracy traits in the certain industries, finding its application in the Chemical, Petrochemical, Plastic, Paper Pneumatic Control System and Air conditioning industries.
Nominal Size (mm) | 40, 50, 63, 80, 100 mm |
---|---|
Scale Range | 0.. Vacuum to 700 kg/cm2 & above on request |
Accuracy in FSD | 1.6% |
Thread Connection | 1/8″, 1/4″, 3/8″, ½ " BSP & NPT, M-10, M-12, M-20 |
Case and Bezel | Drawn steel, SS 304 |
Pressure Elements | Bourdon Tube |
Diaphragm | Nil |
Wetted | Brass, SS 304 |
Optional | Liquid Filled |
Mounting of Gauge | Bottom, Surface, Back, Panel with 3 holes, Panel with bracket |
